4-Pack LED Full Cut-Off Wall Pack, 80W/60W/45W Selectable, 3 CCT, 0-10V Dimmable (WPFC Series)

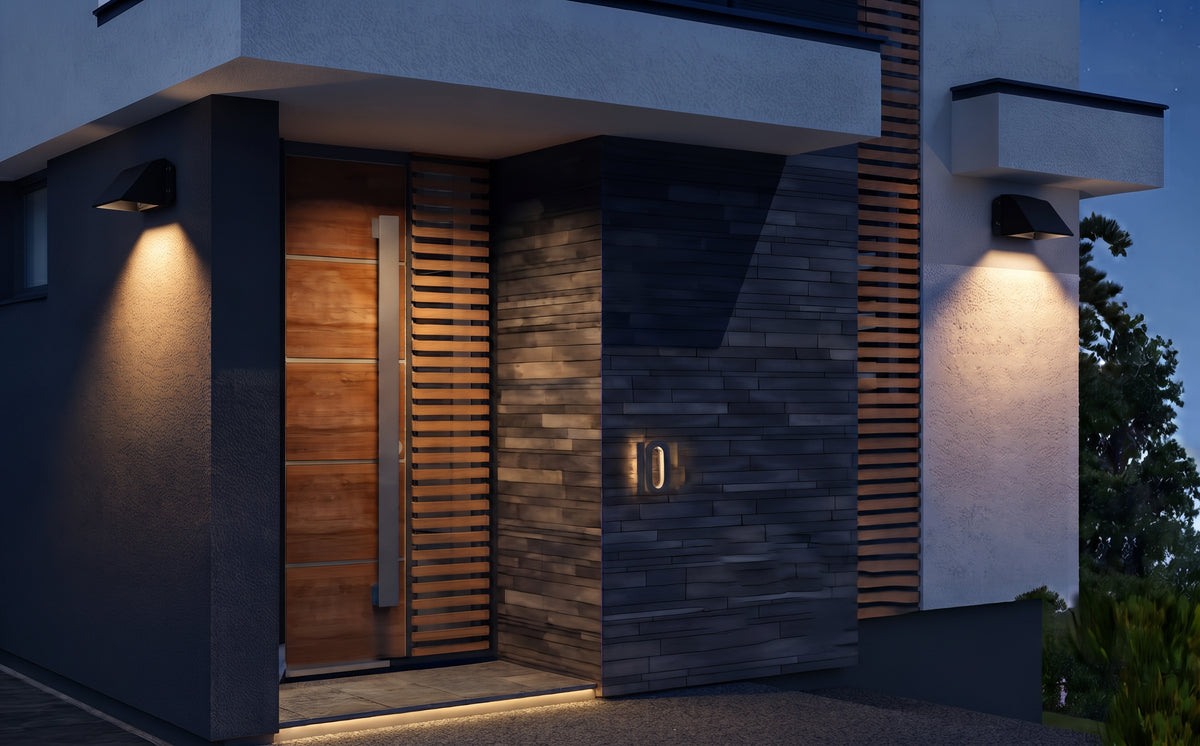

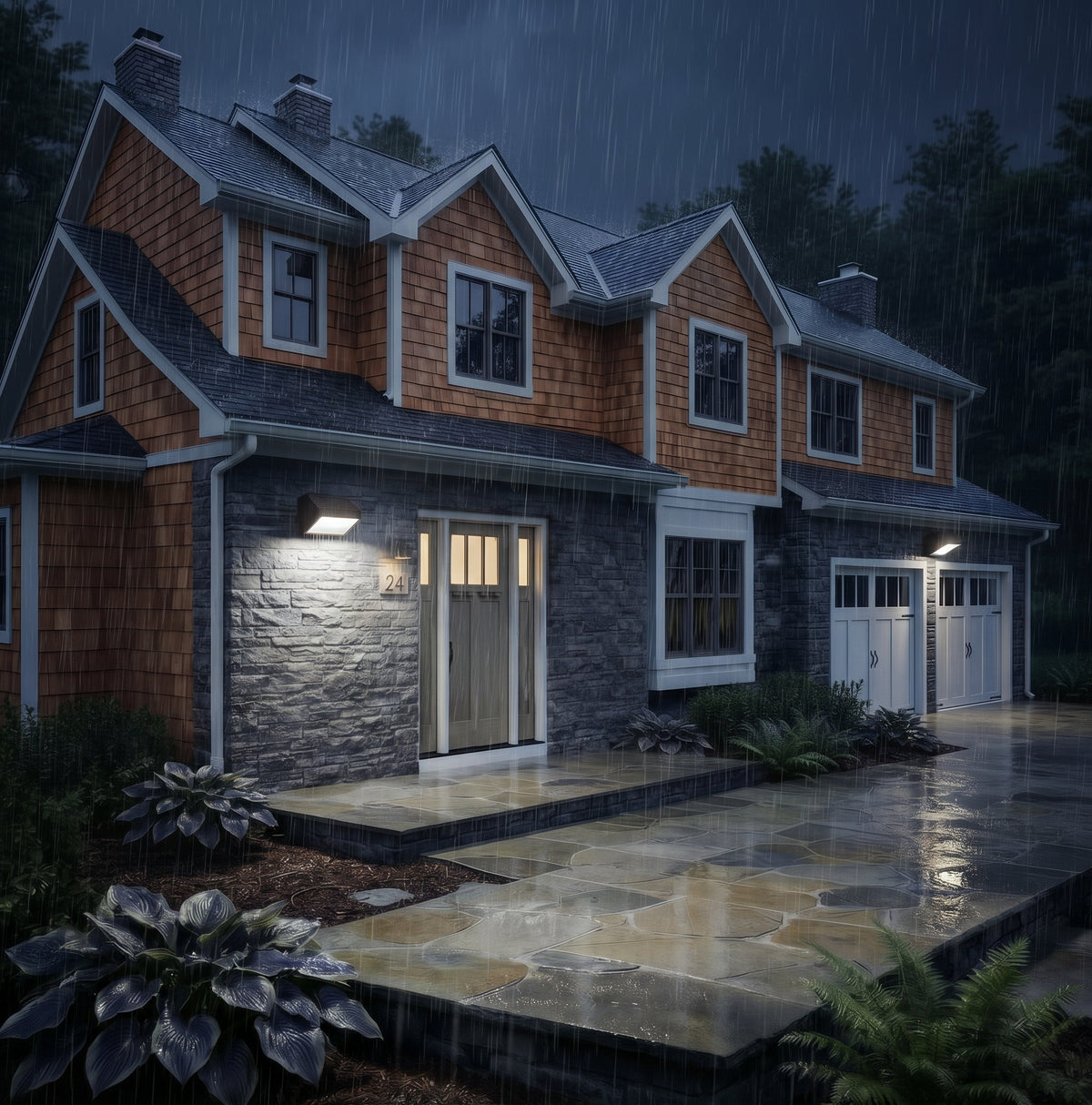

The LED Full Cut-Off Wall Pack is a versatile outdoor lighting solution designed for residential, commercial, industrial, and security lighting applications. With selectable wattage and color temperature, this wall pack provides flexible lighting performance for different installation needs. Its full cut-off design helps direct light downward for controlled outdoor illumination, while the durable dark bronze finish complements a wide range of building exteriors. Designed for wet locations, this LED wall pack delivers reliable performance in demanding outdoor environments.

Key Features

• Selectable Wattage: Choose from 80W, 60W, or 45W to match different lighting requirements.
• High Lumen Output: Delivers 5,850 to 10,400 lumens for bright outdoor illumination.
• 3 CCT Selectable: Choose 3000K, 4000K, or 5000K to create the desired light appearance.
• 0-10V Dimming: Supports 0-10V dimming for flexible lighting control.
• Wide Input Voltage: Operates on AC 100-277V, 50/60Hz for versatile commercial and industrial installations.

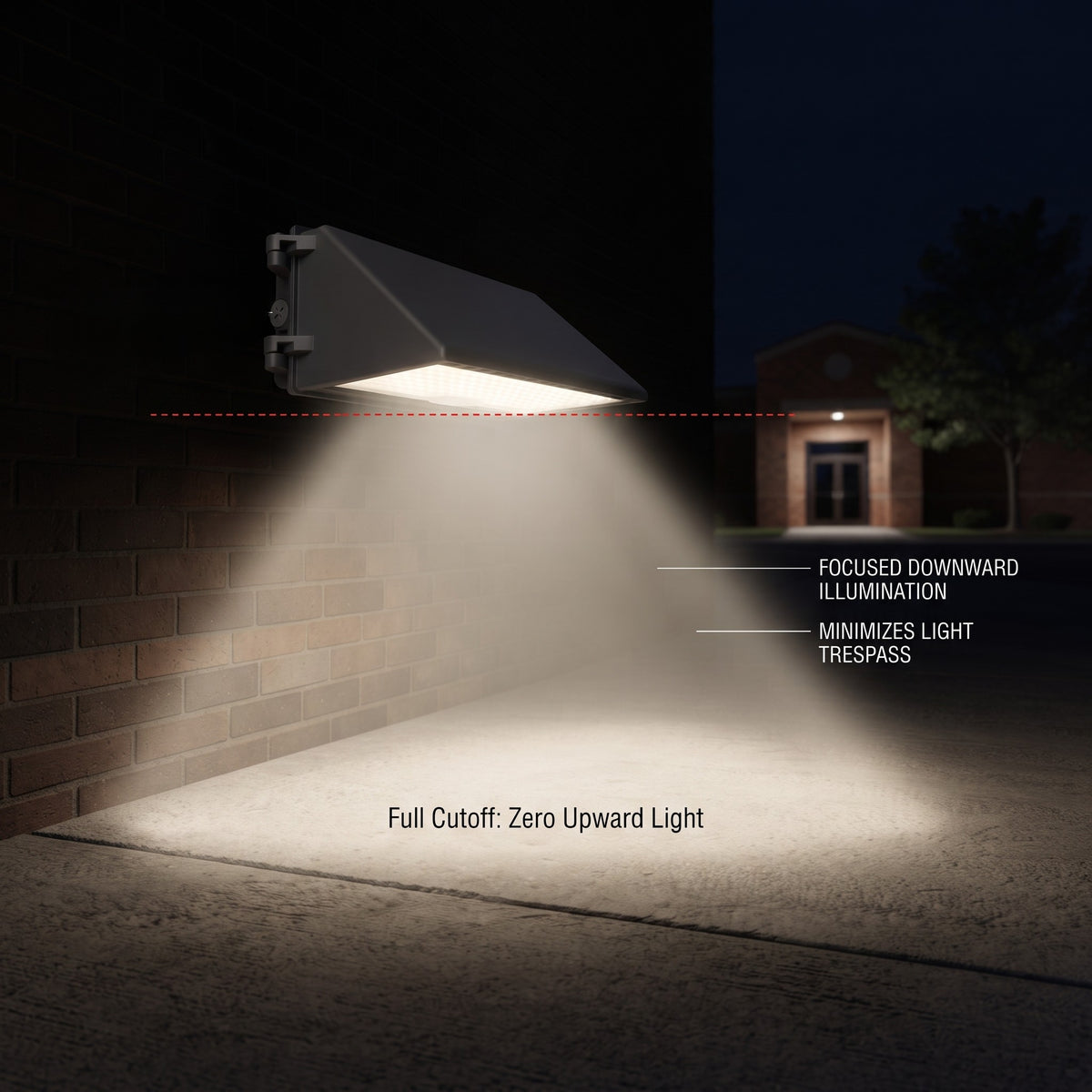

• Full Cut-Off Design: Directs light downward for controlled illumination and no upward light.
• Wet Location Rated: IP65 rated for reliable outdoor use in wet environments.

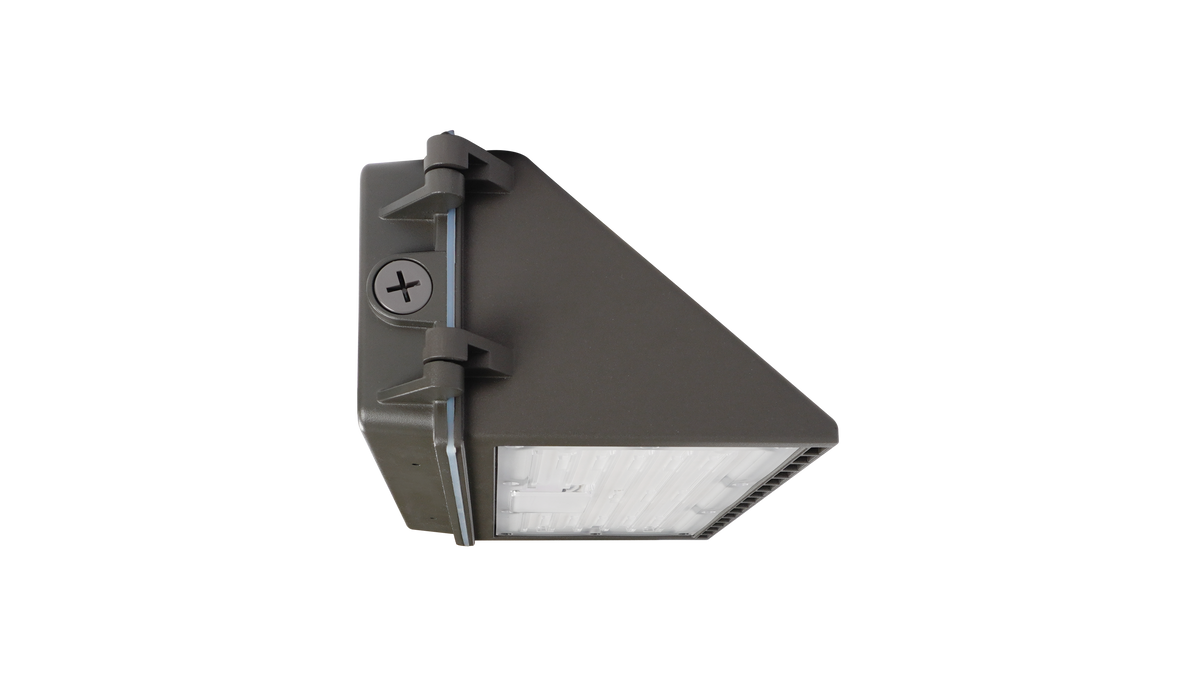

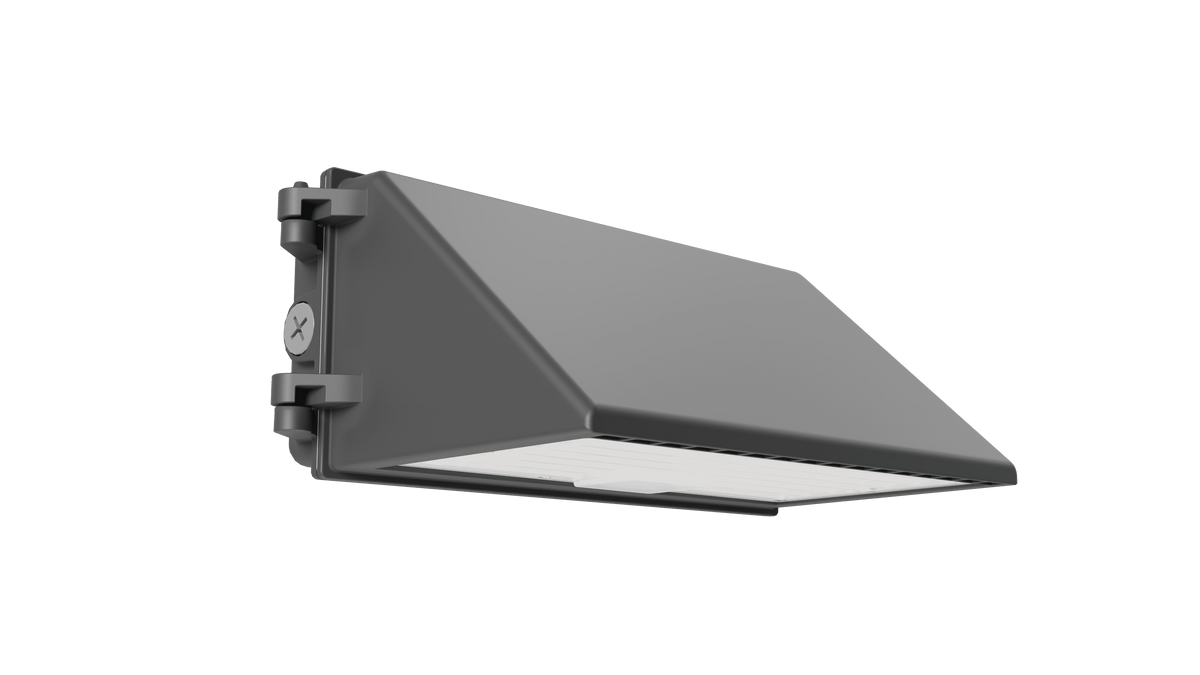

• Durable Finish: Dark bronze lamp shell provides a classic appearance for commercial and industrial exteriors.
• Wide Operating Temperature: Designed to operate from approximately -40°F to +122°F (-40°C to +50°C).
• Surge Protection: Provides 6kV surge protection for both L/N-PE and L-N.
• Long LED Performance: Maintains over 70% of initial lumens at 50,000+ hours.
• Optional Photocell: Photocell control is available as an accessory and can be pre-installed.

Ideal Applications

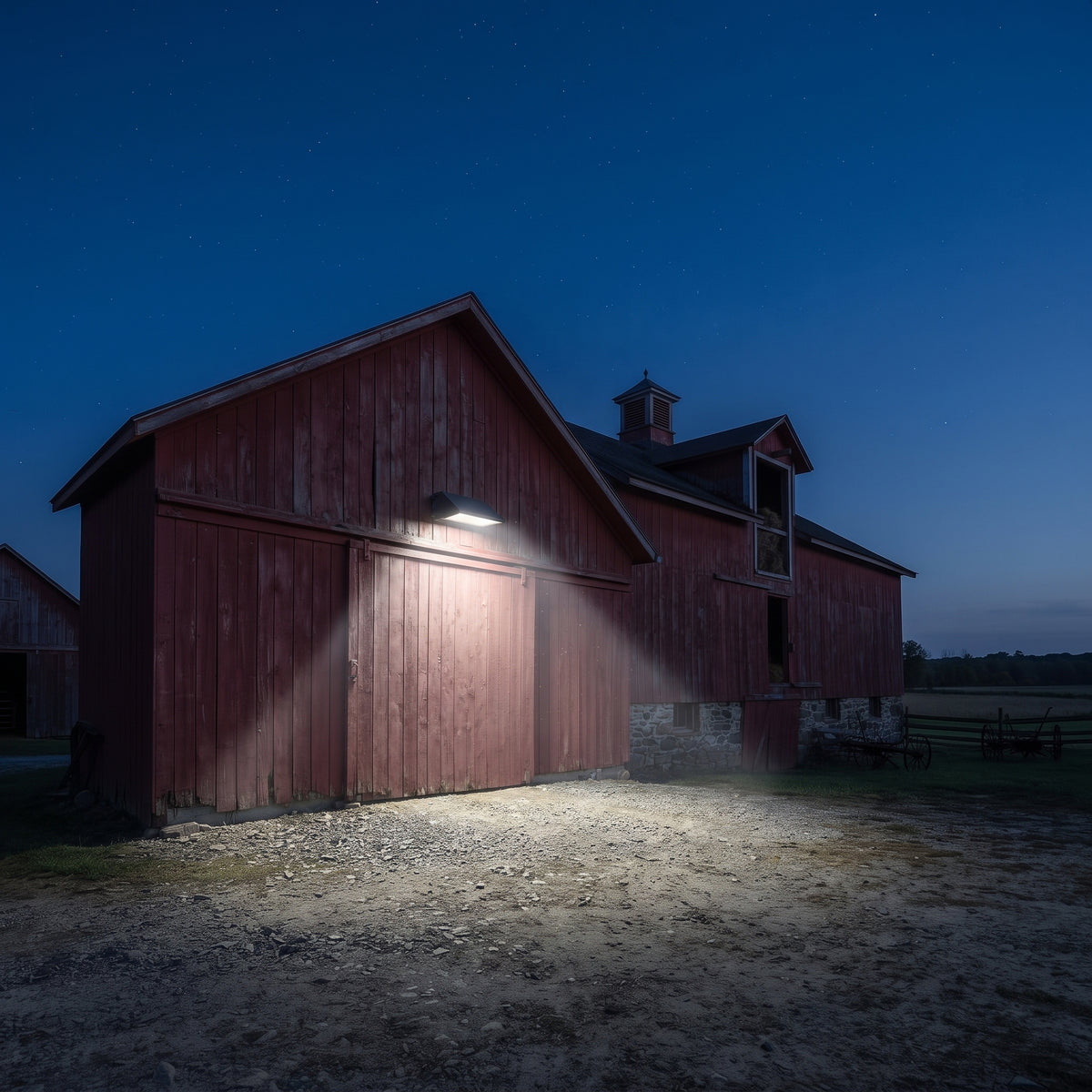

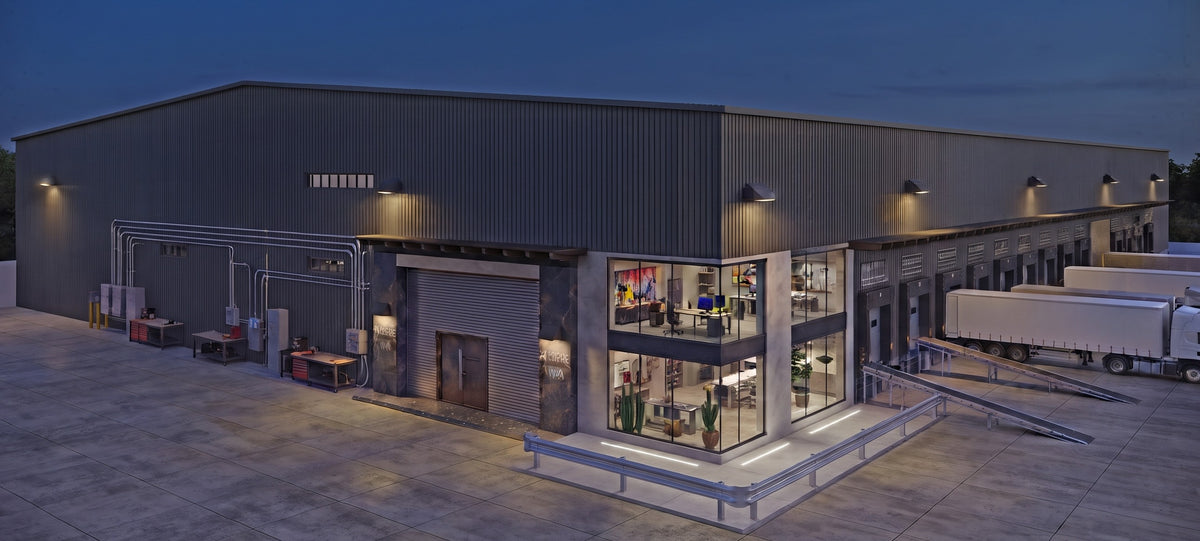

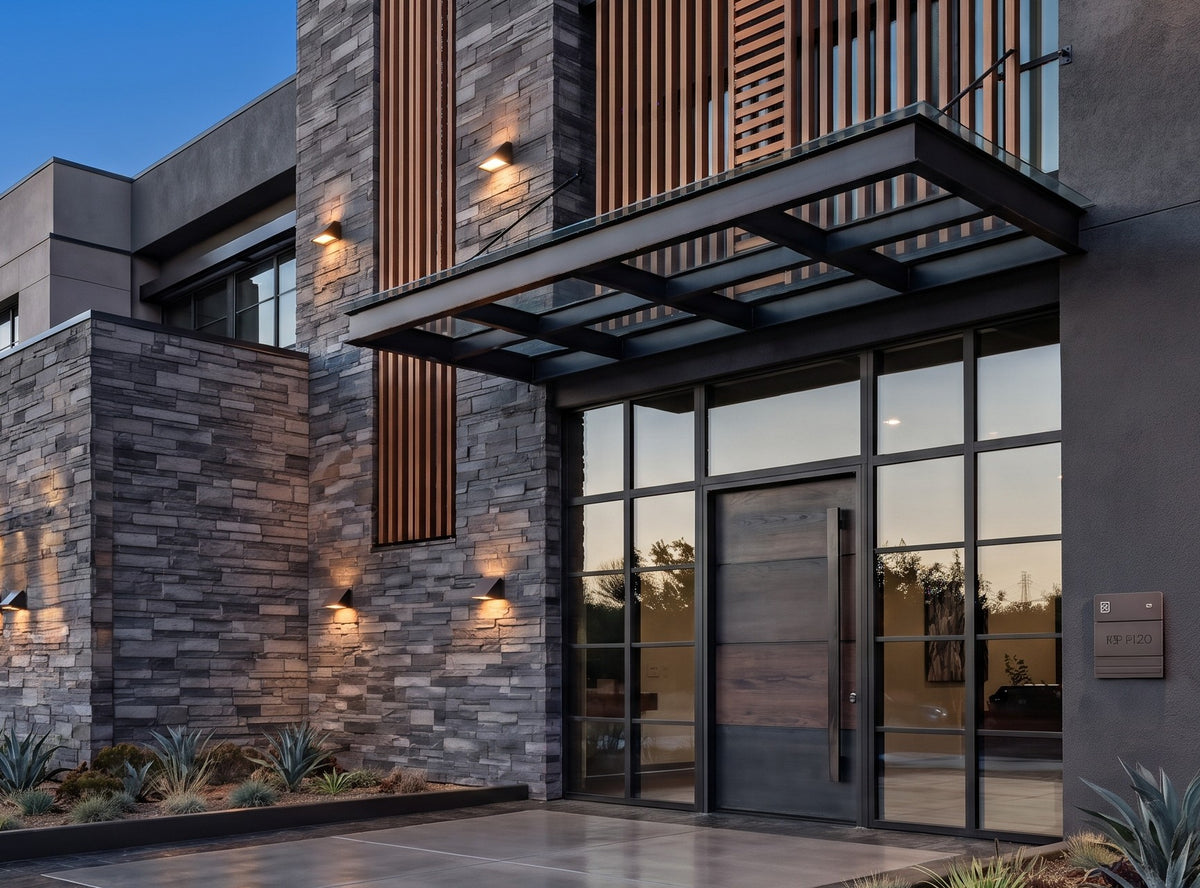

Ideal for building facades, entrances, security lighting, parking areas, building perimeters, walkways, commercial properties, industrial facilities, warehouses, and other outdoor wall-mounted lighting locations.
