LED Architectural Recessed Luminaire PB03A Series – Selectable Wattage & CCT Backlit LED Panel Light, UL & DLC Listed, 0-10V DimmablePB03A SERIES）

The LED Architectural Recessed Luminaire (PB03A Series) combines modern architectural styling, energy efficiency, and flexible installation options, making it an ideal lighting solution for commercial offices, schools, healthcare facilities, retail stores, conference rooms, corridors, and other indoor applications. Designed with advanced backlit LED technology, the PB03A Series delivers smooth, uniform, glare-free illumination while achieving high luminous efficacy up to 140 lm/W for maximum energy savings and long-lasting performance.

Available in both 2x2 and 2x4 configurations, this premium LED architectural panel light features 5 selectable wattages and 5 selectable color temperatures (3000K/3500K/4000K/5000K/6500K), allowing users to customize brightness and ambiance to suit different environments and project requirements. Its versatile design supports recessed, surface-mounted, or suspended installation, providing flexibility for both new construction and retrofit projects.

Certified with UL and DLC listings, the PB03A Series ensures reliable quality, enhanced safety, and eligibility for energy rebate programs. The integrated 0-10V dimming capability offers smooth dimming performance, while the optional emergency backup kit provides added security during power outages. Built for durability and efficiency, the fixture maintains over 70% lumen output after 50,000+ hours of operation, reducing maintenance costs and delivering dependable long-term lighting performance.

Key Features

• UL & DLC Listed LED architectural recessed luminaire
• High efficiency up to 140 lm/W for superior energy savings
• 5 selectable wattages for flexible power adjustment
• 5 selectable CCT options: 3000K / 3500K / 4000K / 5000K / 6500K
• Advanced backlit design for uniform, glare-free illumination
• 0-10V dimmable for smooth lighting control
• Supports recessed, surface-mounted, and suspended installations
• Optional emergency battery backup available
• Long lifespan: 50,000+ hours

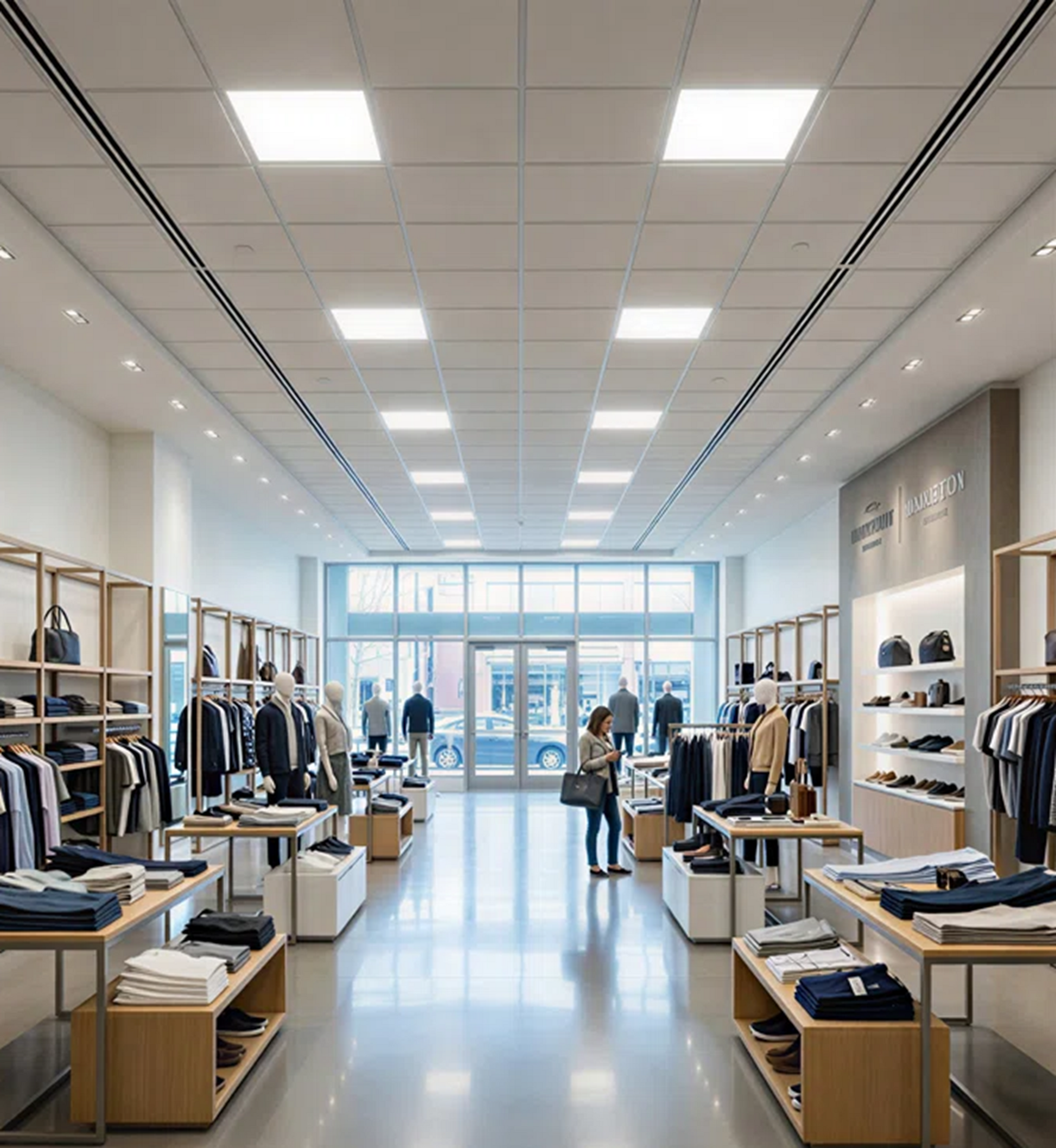

• Ideal for offices, schools, hospitals, retail stores, and commercial spaces

Specifications

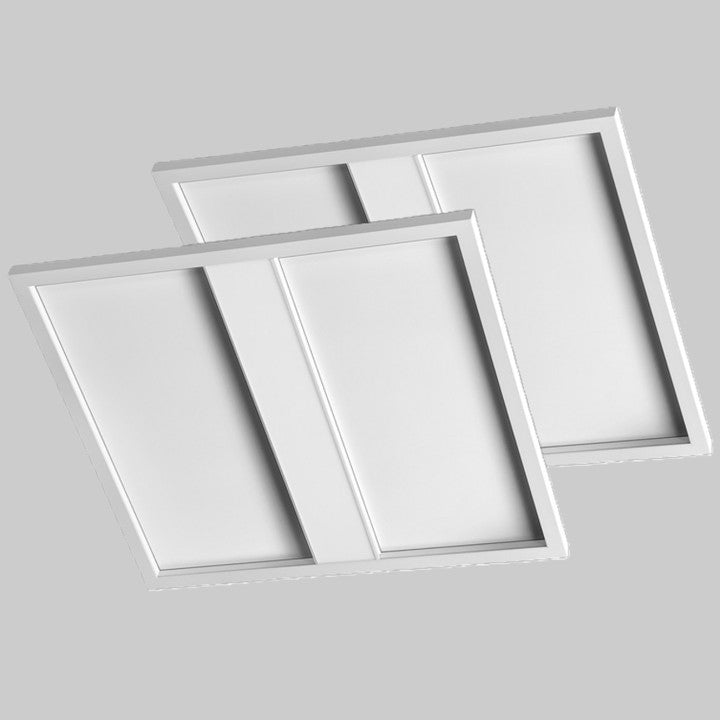

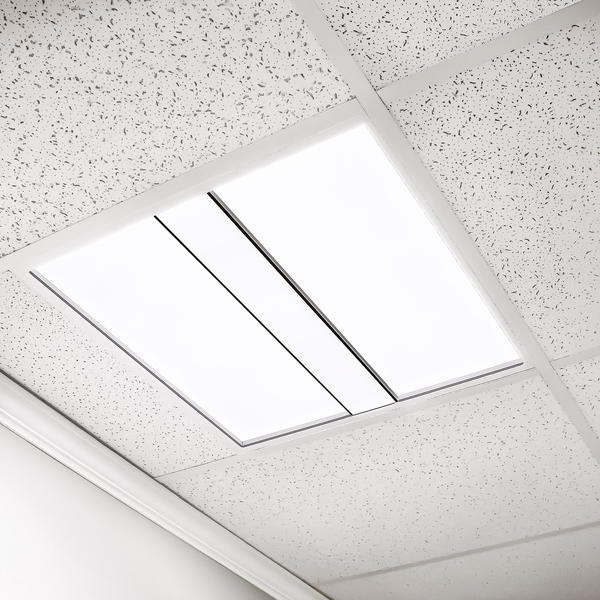

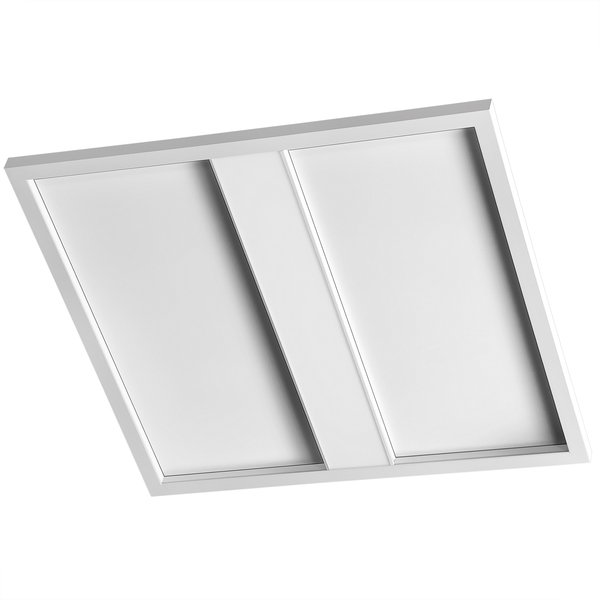

PB03A-2X2P-XX-TWCCT(XX)

• Size: 2' x 2'
• Selectable Wattage: 40W / 30W / 25W / 20W / 15W
• Lumen Output: 4890 LM
• Beam Angle: 110°

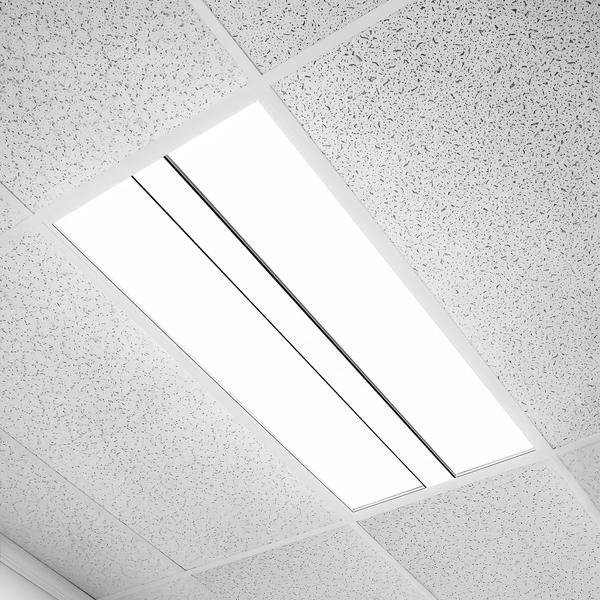

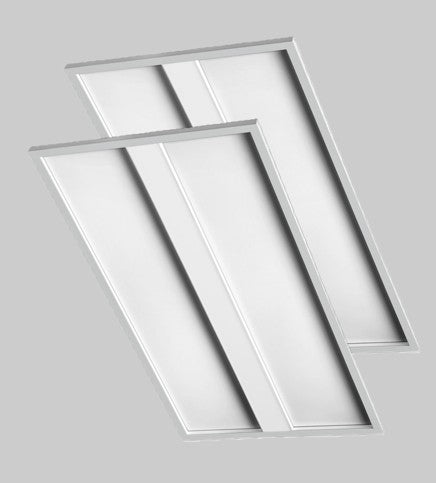

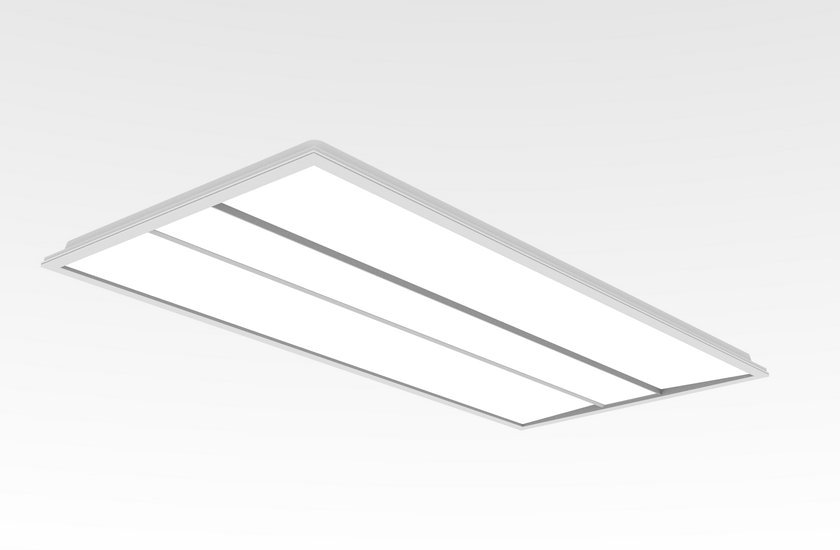

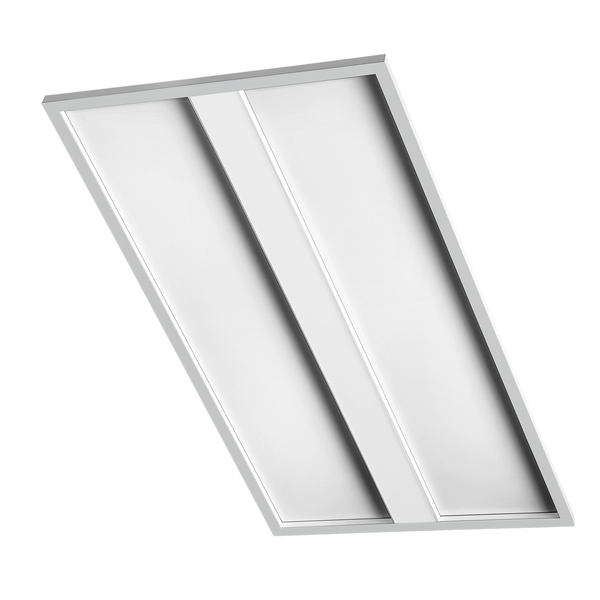

PB03A-2X4P-XX-TWCCT(XX)

• Size: 2' x 4'
• Selectable Wattage: 72W / 50W / 40W / 30W / 20W
• Lumen Output: 10087 LM
• Beam Angle: 110°

General Specifications

• Input Voltage: 120-277VAC
• Dimming: 0-10V Dimmable
• CRI: >80
• Power Factor: >0.9
• Protection Rating: IP20 (Indoor Use Only)
• Working Temperature: -13°F to +113°F (-25°C to +45°C)
• DLC #: S-39BTZ1 / S-26G3GL
• Package Quantity: 2 PCS/Pack

SPEC SHEET

-----------------------------------------------------------
