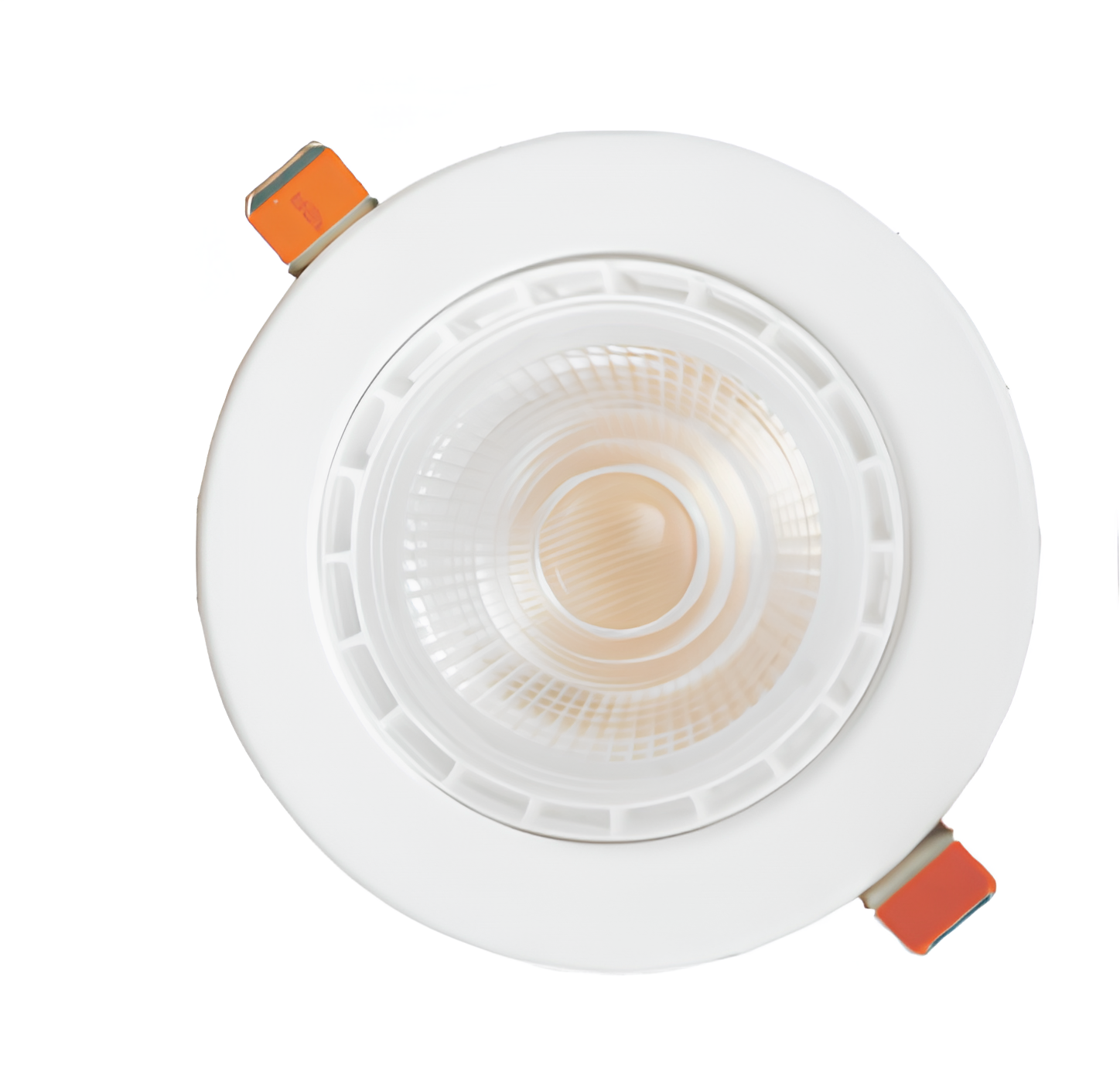

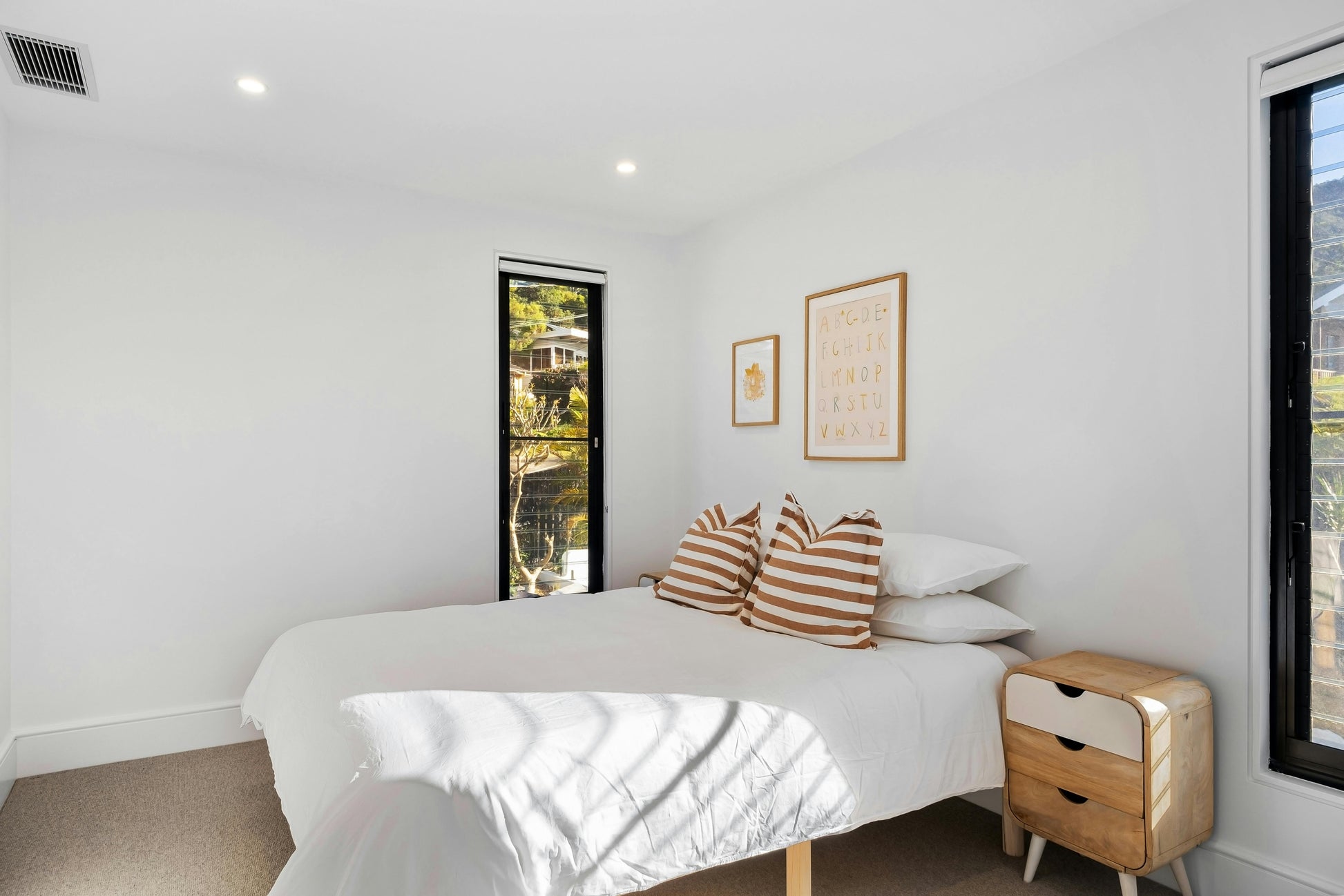

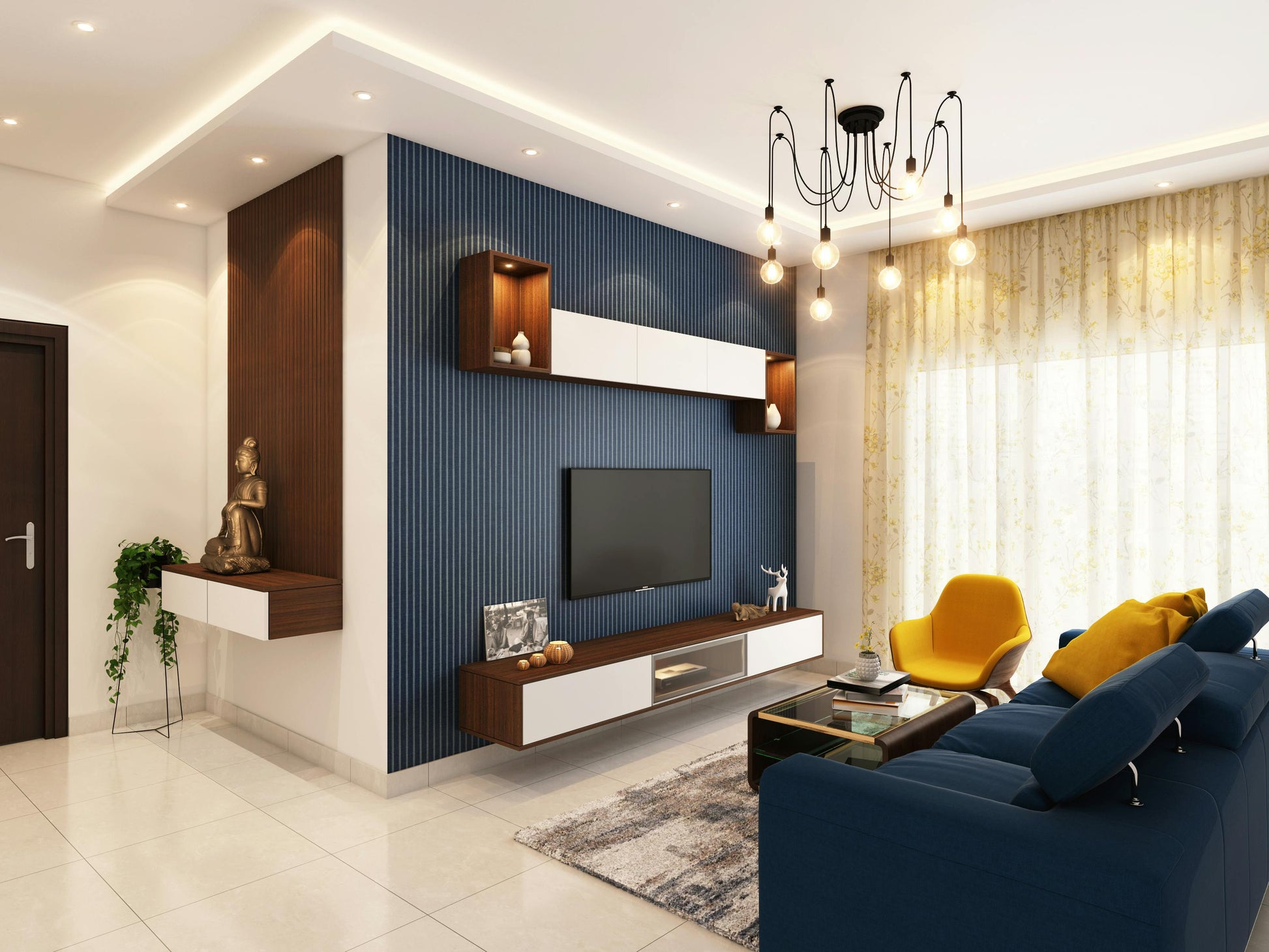

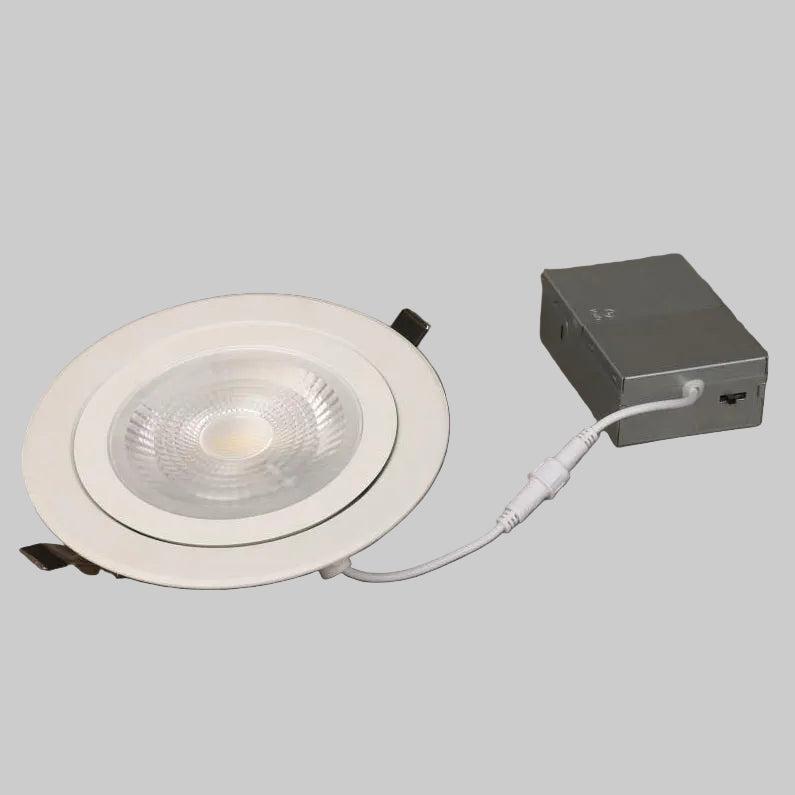

UADL Series - Recessed Downlight LED Gimbal Recessed Downlight (Ideal for Living rooms/Bedrooms/Offices/Kitchens/Lobbies/Conference rooms)

This LED Gimbal Recessed Rotatable Downlight allows you to direct your recessed ceiling lights up to 30 degrees in any direction. Its low-profile, round LED panel clips into your ceiling with no need for housing or a ceiling can. It includes a metal junction box (J-Box) for an easy canless recessed lighting installation solution. Ideal for offices, schools, conference rooms, hospitals, and more commercial spaces.

• Comes with a metal junction box (J-Box)

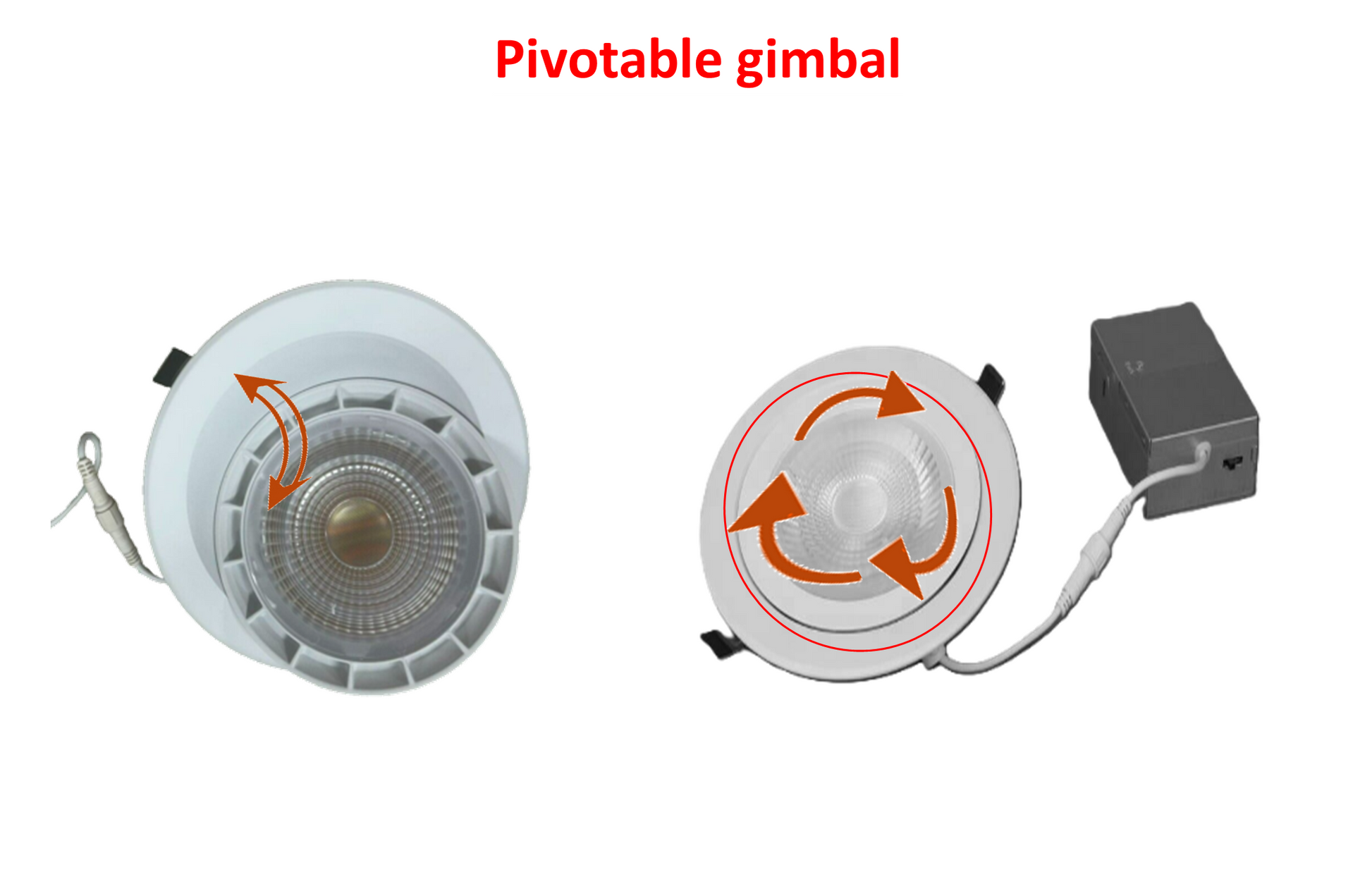

• 30° tilting and 360° rotation

SPEC:

Wattage:  HY -UADL-R4-9W-5CCT/9W; HY -UADL-R6-12W-5CCT/12W;

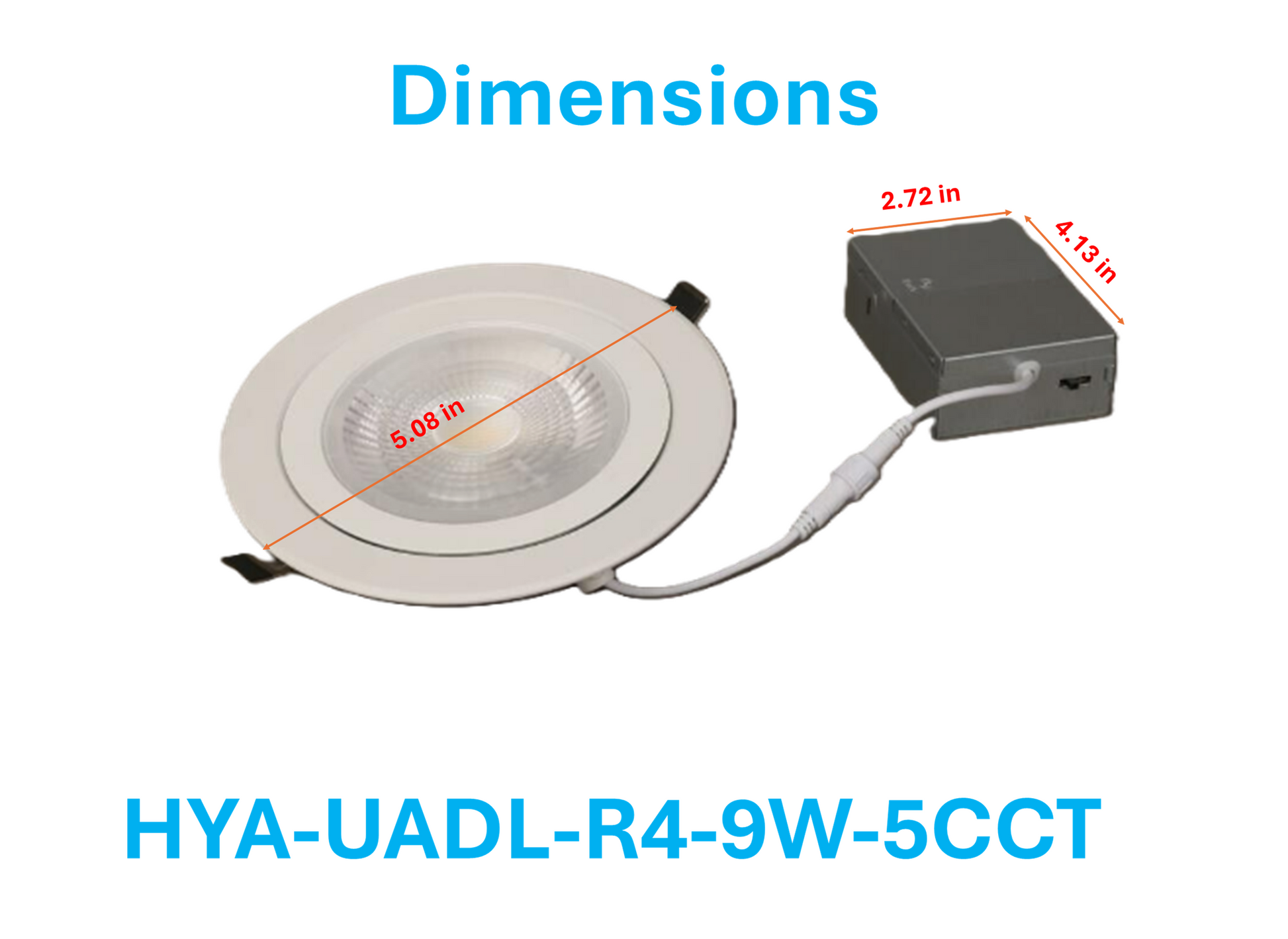

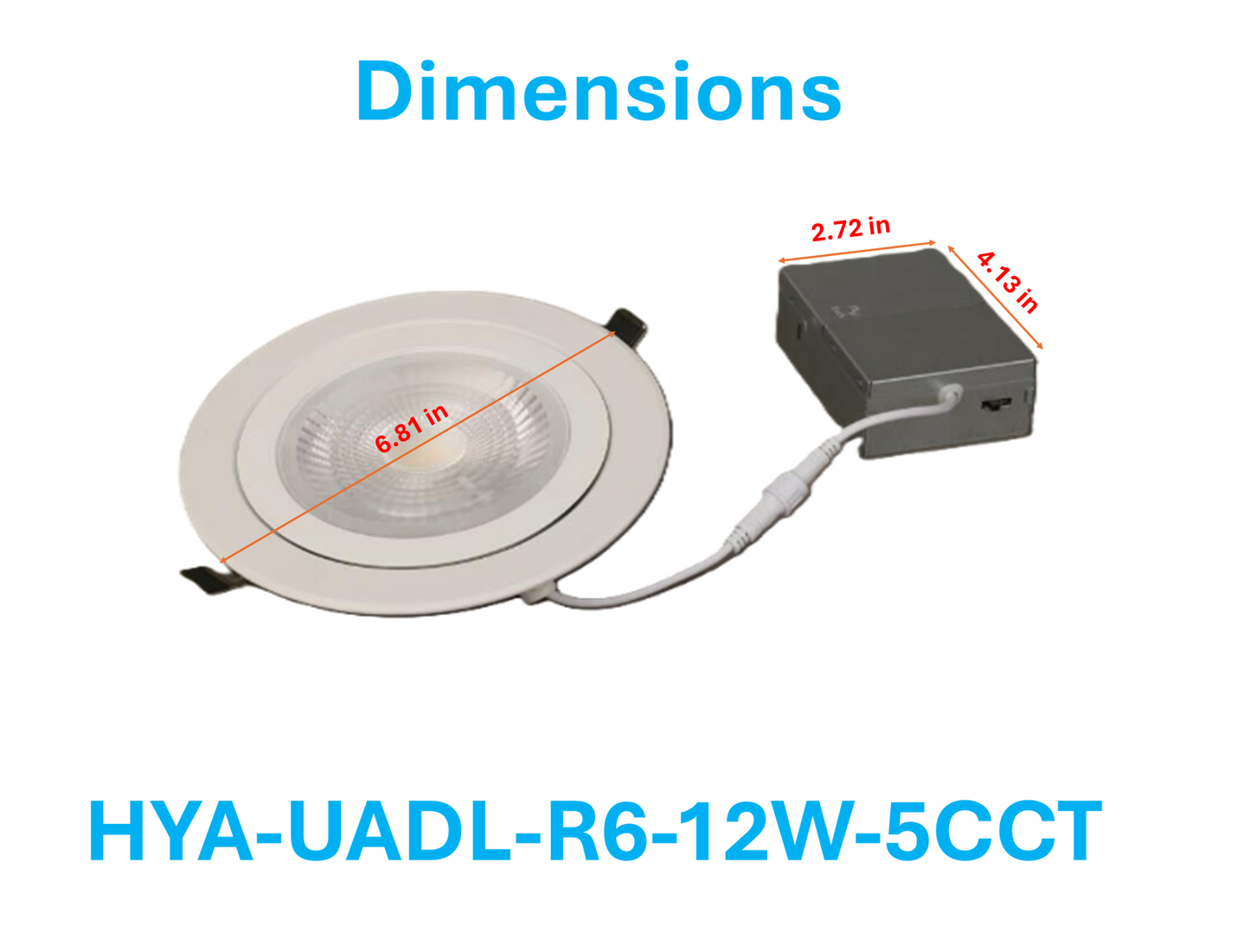

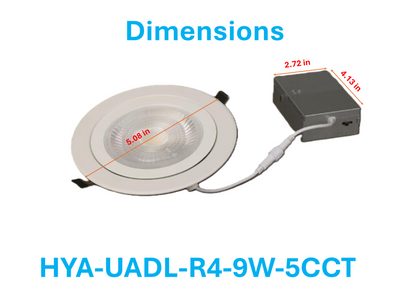

Size:  4"; 6";

Lumens: 720 LM; 960 LM;

Rated Input Voltage(V): 120 V 60Hz AC;

Light Source: COB;

CCT: Selectable: 2700K/3500K/4000K/5000K/6000K;

Body: White;

Beam Angle (°): 30° Tilting/ 360° Rotation;

Dimming: Triac Dimmable;

Lumen Efficiency: 80 Lm/W;

Color Rendering Index: Ra>80;

Power Factor: 0.95;

Working Temperature: -4 ° F ~+105 °F / -15°C ~40°C;

Storage Temperature: -4 ° F ~+105° F / -15 ° C ~ +40 ° C

Environment Location: IP 40 – Indoor Only;

Lifespan: Lumen Maintenance over 70% @ 50,000+ Hours;

Warranty: 5 Years Limited
